Embraer Legacy 600
Embraer launched the Legacy 600 in 2000, a transformation of the ERJ-135 commercial airliner, highly regarded due to its reliability. They added seven-foot winglets to improve lift and reduce drag, and the fuel-transfer system was modified, resulting in an extremely high-performance aircraft. This spacious corporate jet features a true VIP cabin, larger than that of its Dassault and Bombardier rivals, which is configured in 3 separate seating areas to easily cater for up to 13 passengers in optimum comfort. The 600 also features the largest baggage compartment of any aircraft in its category, accessible from the main cabin, and is also certified for steep approaches, making it able to land at airfields that many other aircraft can't access. Providing great range and interior luxury, it is no surprise that the Legacy 600 is such a popular Large Business Jet as it provides an excellent service for medium-haul flights.
Large Jet
| Specification | Value |
|---|---|
| Manufacturer | Embraer |
| Category | Large Jet |
| Range* | 6019 km 3250 NM |
| Cruise speed | 843 km/h 455 kts |
| Seats** | 13 |
| Suitcases | 20 |
* with IFR reserves
** in standard configuration

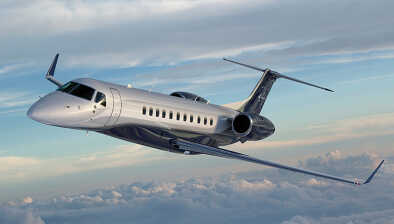

Aircraft Pictures
History
Embraer first announced the Legacy 600 at the Farnborough Airshow in 2000, initially designating it the Legacy 2000. The aircraft was developed as a business jet version of the proven ERJ 135 commercial airliner platform.
The first Legacy 600 flew a year later in 2001 and had reached the private jet market by 2002. The aircraft successfully adapted commercial aircraft reliability and performance for business aviation applications.
Based on the ERJ 135 platform, the Legacy 600 offered operators the benefits of airline-proven systems and maintenance networks. The aircraft featured a spacious cabin and intercontinental range capabilities that established it as a significant competitor in the large-cabin category.
The Legacy 600's success validated Embraer's strategy of adapting commercial aircraft for business use. Priced at $26 million, the aircraft filled an important gap in Embraer's business jet lineup and served as the foundation for the company's continued expansion in business aviation markets worldwide.
Technical Specifications
General information
| Model name | Legacy 600 |
|---|---|
| Manufacturer | Embraer |
| Aircraft category | large jet |
| ICAO Designator | E135 |
| Start/End of Production | 2001 - 2013 |
| Number of pilot(s) | 2 |
Performances
| Range (with IFR reserves) | 3250 NM (6019 km) |
|---|---|
| Ferry range | 3450 NM (6389 km) |
| Cruise speed | 455 kts (843 km/h) |
| Max Operating Speed – VMO | 320 KIAS |
| Max Mach Operating Speed - MMO | Mach 0.8 |
| Long-Range Cruise Speed - LRC | 424 KTAS |
| Approach Speed | 113 kts |
| Takeoff Distance | 1711 m |
| Average Landing Distance | 762 m |
| Service Ceiling | 41000 ft |
| Thrust | 7987 lbf |
Aircraft technology
| Engine type | Turbofan |
|---|---|
| Engine(s) | 2 x Rolls-Royce AE 3007 |
| Avionics | Honeywell Primus Elite |
Dimensions and capacity
| Aircraft length | 26.33 m |
|---|---|
| Aircraft height | 6.76 m |
| Wing span | 21.17 m |
| Cabin height | 1.83 m (6.0 ft) |
| Cabin length | 12.92 m (42.4 ft) |
| Cabin width | 2.08 m (6.83 ft) |
| Baggage volume | 6.8 m3 |
| Seats (standard config) | 13 |
| Seats (max) | 14 |
| Suitcases | 20 |
| Carry-on luggage | 12 |
| Maximum payload | 2356 kg |
| Maximum TakeOff Weight - MTOW | 22500 kg |
| Maximum Landing Weight - MLW | 18500 kg |
| Fuel capacity | 10260 L |
FAQ
Does the Legacy 600 have more range than the Legacy 650?
No, the Legacy 650 offers significantly more range than the Legacy 600. The Legacy 600 provides 6,019 km (3,250 nautical miles) whilst the Legacy 650 extends this to 7,223 km (3,900 nautical miles). This additional 1,204 km gives the Legacy 650 access to longer routes such as London to Los Angeles or Dubai to New York, which would require a fuel stop in the Legacy 600.
How many passengers can the Legacy 600 accommodate?
The Legacy 600 can seat between 8 and 13 passengers, depending on cabin configuration. In its standard layout, it accommodates 8 passengers across three distinct seating areas. The cabin measures 13 metres in length and 2.08 metres in width, with a height of 1.82 metres.
What is the cruising speed of the Legacy 600?
The Embraer Legacy 600 cruises at 843 km/h (455 knots). This speed places it competitively within the large jet category for connecting European cities and intercontinental routes.
What is the maximum range of the Legacy 600, and which city pairs can it connect?
The Legacy 600 offers a maximum range of 6,019 km (3,250 nautical miles) under NBAA IFR conditions. This allows nonstop flights such as London to Dubai, New York to London, or Frankfurt to Mumbai without requiring fuel stops.
What makes the Legacy 600's baggage capacity special?
The Legacy 600 features the largest baggage compartment of any aircraft in its category, with space for 12 carry-on bags and 20 suitcases. The baggage area is accessible from the main cabin during flight, allowing passengers to retrieve items without requiring the aircraft to land. This feature, combined with the aircraft's steep approach certification, makes it particularly versatile for operations at challenging airports.
