Nextant 400XT
Introduced in 2011, the Nextant 400XT is a revamped version of the Beechjet 400A or Hawker 400XP. Re-engineered from the original airframe of the Hawker 400XP, Nextant’s 400XT received new engines and avionics and a revisited interior. The re-manufactured aircraft offers improved performance, greater speed and range, with lower operating costs as it is more fuel-efficient than its predecessors. The plane’s range increased by 50% and its climb rate significantly improved. Since actual performance depends on factors such as headwinds, number of passengers or payload, range and speed differ between one trip and another. Its theoretical maximum cruise speed reaches 828 kilometres per hour.

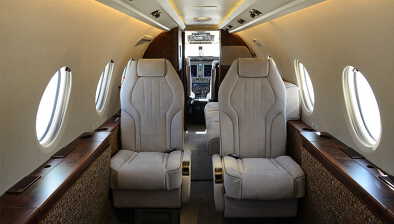

Typical seating configuration features seven seats: a club layout for four guests and an additional three-seater divan. The interior can be customised to suit travellers’ needs and seat five to seven passengers. No matter the chosen configuration, the plane comes with a refreshment centre, on-board HD entertainment, a cabin management system with individual temperature and lighting controls, and electronically dimmable window shades. While the cabin’s low-noise levels allow for a peaceful conversation and reduce fatigue, Nextant 400XT’s reliable data and communication systems help passengers experience productive, enjoyable flights. A recommendable choice for business trips or weekend breaks.
Light Jet
| Specification | Value |
|---|---|
| Manufacturer | Nextant |
| Category | Light Jet |
| Range* | 3713 km 2005 NM |
| Cruise speed | 828 km/h 447 kts |
| Seats** | 7-8 |
| Suitcases | 4 |
* with IFR reserves
** in standard configuration
Aircraft Pictures
History
Technical Specifications
General information
| Model name | Nextant 400XT |
|---|---|
| Manufacturer | Nextant Aerospace |
| Aircraft category | light jet |
| ICAO Designator | NX40 |
| Start/End of Production | 2011 - 2017 |
| Number of pilot(s) | 2 |
Performances
| Range (with IFR reserves) | 2005 NM (3713 km) |
|---|---|
| Ferry range | 2160 NM (4000 km) |
| Cruise speed | 447 kts (828 km/h) |
| Max Operating Speed – VMO | 320 KIAS |
| Max Mach Operating Speed - MMO | Mach 0.79 |
| Long-Range Cruise Speed - LRC | 437 KTAS |
| Approach Speed | 117 kts |
| Takeoff Distance | 1165 m |
| Average Landing Distance | 883 m |
| Rate of Climb | 4300 ft/min |
| Service Ceiling | 45000 ft |
| Thrust | 3052 lbf |
Aircraft technology
| Engine type | Turbofan |
|---|---|
| Engine(s) | 2 x Williams FJ44-3AP |
| Avionics | Rockwell Collins Pro Line 21 with Engine Indication System (EIS) |
Dimensions and capacity
| Aircraft length | 14.76 m |
|---|---|
| Aircraft height | 4.24 m |
| Wing span | 13.25 m |
| Cabin height | 1.45 m (4.75 ft) |
| Cabin length | 4.72 m (15.5 ft) |
| Cabin width | 1.50 m (4.92 ft) |
| Baggage volume | 1.3 m3 |
| Seats (standard config) | 7-8 |
| Seats (max) | 9 |
| Suitcases | 4 |
| Carry-on luggage | 3 |
| Maximum payload | 1100 kg |
| Maximum TakeOff Weight - MTOW | 7394 kg |
| Maximum Landing Weight - MLW | 7121 kg |
| Fuel capacity | 2775 L |
FAQ
How many passengers can the Nextant 400XT accommodate?
The Nextant 400XT typically seats seven passengers in a standard configuration featuring a four-seat club layout with an additional three-seater divan. However, the interior can be customised to accommodate between five and seven passengers depending on the chosen seating arrangement. The aircraft offers 1.0 cubic metres of baggage space and can carry 4.8 carry-on bags plus 1 suitcase, making it suitable for both business trips and weekend breaks.
Is the Nextant 400XT faster than the Hawker 400XP?
Yes, the Nextant 400XT is faster than the Hawker 400XP. The 400XT cruises at 828 km/h (447 knots) compared to the 400XP's cruise speed of approximately 833 km/h (450 knots). This improvement stems from the 400XT's new engines and re-engineered systems, which not only increase speed but also provide better fuel efficiency and a significantly improved climb rate compared to its predecessor.
What is the range of the Nextant 400XT?
The Nextant 400XT has an NBAA IFR range of 3,713 km (2,005 nautical miles), which represents a 50% increase over the original Hawker 400XP design. This range allows for flights such as London to Dubai or New York to Los Angeles without refuelling stops. The ferry range extends to 4,000 km (2,160 nautical miles), providing additional flexibility for longer non-stop journeys.
What is the cruise speed of the Nextant 400XT?
The Nextant 400XT cruises at 828 km/h (447 knots). This represents a significant improvement over its predecessor, the Hawker 400XP, thanks to the aircraft's new engines and enhanced aerodynamics. The theoretical maximum cruise speed can reach 828 kilometres per hour under optimal conditions, though actual performance varies depending on factors such as headwinds, passenger load, and payload.
What makes the Nextant 400XT unique as a remanufactured aircraft?
The Nextant 400XT is distinctive as a comprehensively remanufactured aircraft rather than simply a refurbished one. Starting with the original Hawker 400XP airframe, Nextant completely re-engineers the aircraft with new engines, modern avionics, and redesigned interiors. This approach delivers the performance and reliability of a new aircraft at a lower cost, with the 400XT offering 50% greater range, improved climb rates, and reduced operating costs compared to the original design. The aircraft also features modern amenities including HD entertainment systems and advanced cabin management controls.
